Ball-Ball Bearing Series

Water Pump Bearings Model: Ball-Ball Bearing Series / Ball-Roller Bearing Series Ball-Ball Bearing Series:W / WN / WS / WNS / WK / WKN

Online Order Print this page Showing 1-6 of 1, total pages 1 2 3 4 5 6

W series
ˇˇˇˇWater Pump Bearings are mainly used in the automotive cooling pumps, in which the bearing unites replace the original two sets of single axial bearings. The product series includes two types: one is two rows of balls, and the other is one row of ball, one row of roller, which mainly endures radial load. The small loading bearing adopts the two rows of balls, and the product with large loading chooses the structure of one row of ball, one row of roller.

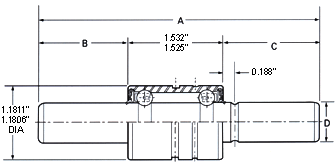

FAG A B C D W2289 2.89 0.16 1.20 0.6267 W2325 3.25 0.16 1.56 0.6267 W2355-3 3.55 0.67 1.35 0.6267 W2366 3.66 0.73 1.40 0.6267 W2371 3.71 0.69 1.50 0.6267 W2375-3 3.76 0.56 1.67 0.6267 W2385 3.86 0.67 1.66 0.6267 W2401-3 4.02 0.67 1.82 0.6267 W2406-1 4.06 0.92 1.61 0.6267 W2415-1 4.15 0.80 1.82 0.6267 W2417-2 4.17 0.81 1.83 0.6267 W2431 4.31 0.58 2.20 0.6267 W4234 4.35 0.84 1.97 0.6267 W2434-1 4.35 0.84 1.97 0.6267 W2435 4.36 0.77 2.06 0.6267 W2439 1.39 0.94 1.92 0.6267 W2440-4 4.40 1.15 1.72 0.6267 W2441-1 4.41 1.06 1.82 0.6267 W2446 4.47 1.08 1.86 0.6267 W2454 4.55 0.81 2.21 0.6267 W2456 4.56 1.10 1.93 0.6267 WW2456-1 4.57 1.07 1.97 0.6267 W2468 4.69 1.47 1.69 0.6267 W2468-1 4.69 1.47 1.69 0.6267 W2472 4.72 1.44 1.75 0.6267 W2475 4.75 1.50 1.72 0.6267 W2476-2 4.76 1.16 2.07 0.6267 W2481 4.81 1.34 1.94 0.6267 W2481-1 4.81 1.13 2.16 0.6267 W2485 4.85 0.77 2.56 0.6267 W2486-2 4.87 1.25 2.09 0.6267 W2503 5.03 1.02 2.48 0.6267 W2503-6 5.03 1.75 1.75 0.6267 W2507 5.08 1.25 2.30 0.6267 W2532 5.33 2.00 1.79 0.6267 W2537 5.37 1.54 2.30 0.6267 W2547 5.47 0.91 3.03 0.6267 W2548-1 5.49 1.38 2.58 0.6267 W2562 5.63 1.58 2.52 0.6267 W2575 5.76 2.51 1.71 0.6267 W2575-2 5.75 2.43 1.79 0.6267 W2637 6.37 2.30 2.55 0.6267 W3399 4.00 0.69 1.78 0.6275 W3481-5 4.81 1.58 1.70 0.6275 W3481-6 4.81 1.58 1.70 0.6275 W3520-2 5.20 1.58 2.09 0.6275 W3520-3 5.20 1.58 2.09 0.6275 W3522-1 5.22 1.17 2.52 0.6275 W3607 6.07 1.17 3.37 0.6275 W3607-1 6.07 1.17 3.37 0.6275
