Linear Motion Ball Bearings

Linear Motion Ball Bearings Model: LM series / LME, LMB series

Online Order Print this page Showing 1-1 of 1, total pages 1

LM series

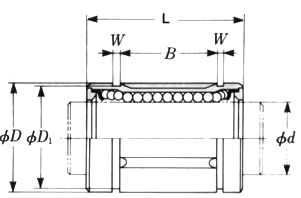

Bearing No. BallRows dr D L B W h h1 ¦È LM5 3 5 10 15 10.2 1.1 1     LM6 4 6 12 19 13.5 1.1 1     LM8S 4 8 15 17 11.5 1.1 1     LM8 4 8 15 24 17.5 1.1 1     LM10 4 10 19 29 22 1.3 1     LM13 4 13 23 32 23 1.3 1.5 LM16 5 16 28 37 26.5 1.6 1.5 11 60° LM20 5 20 32 42 30.5 1.6 1.5 11 60° LM25 6 25 40 59 41 1.85 2 12.5 60° LM30 6 30 45 64 44.5 1.85 2.5 15 60° LM35 6 35 52 70 49.5 2.1 2.5 17 60° LM38 6 38 57 76 58.5 2.1 3 18 50° LM40 6 40 60 80 60.5 2.1 3 20 60° LM50 6 50 80 100 74 2.6 3 25 60° LM60 6 60 90 110 85 3.15 3 30 60° LM80 6 80 120 140 105.5 4.15 3 40 50° LM100 6 100 150 175 125.5 4.15 3 50 50° LM120 8 120 180 200 158.6 4.15 4 85 80° LM150 8 150 210 240 170.6 5.15 4 105 80°

MODEL NO: LM3 LM4 LM12 NUMBER OF BALL ROWS¡¡: 4 4 4 WEIGHT GRF: 1.35g 1.9g 31.5g MAIN OIWENSIONS: dr:3(0,-0.005) D:7(0,-0.009) L:10(0,-0.2) dr:4(0,-0.005) D:8(0,-0.009) L:12(0,-0.2) dr:12(0,-0.009) D:21(0,-0.013) L:30(0,-0.2) B:23(0,-0.2) D1:20(0,-0.2) W:1.3 CIRCULAR RUNOUT DIAMETER: 0.008 0.008 0.012 BASIC LOAD RATING: KGF:7 KGF:11 KGF:9 KGF:13 KGF:42 KGF:61 PROPER BEARING BLOCK(CHOCK/PEDESTA/SUPPORT/SEAT): A SET OF BEARING UNIT: PRODUCT DESCRIPTION:
