Linear Motion Ball Bearings

Linear Motion Ball Bearings Model: LM series / LME, LMB series

Online Order Print this page Showing 1-1 of 1, total pages 1

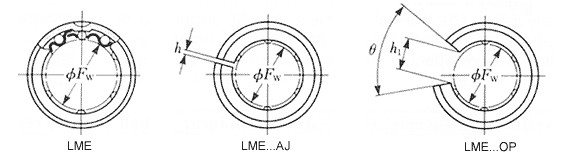

LME series

Bearing No. BallRows dr D L B W h h1 ¦È LME5 4 5 12 22 14.5 1.1 1     LME8 4 8 16 25 16.5 1.1 1     LME12 4 12 22 32 22.9 1.3 1.5 LME16 5 16 26 36 24.9 1.3 1.5 10 78° LME20 5 20 32 45 31.5 1.6 2 10 60° LME25 6 25 40 58 44.1 1.85 2 12.5 60° LME30 6 30 47 68 52.1 1.85 2 12.5 50° LME40 6 40 62 80 60.6 2.15 3 16.8 50° LME50 6 50 75 100 77.6 2.65 3 21 50° LME60 6 60 90 125 101.7 3.15 3 27.2 54° LME80 6 80 120 165 133.7 4.15 3 36.3 54°

LMB series

Bearing No. BallRows dr D L B W h h1 ¦È LMB4 3 6.350 12.700 19.050 12.98 0.992       LMB6 4 9.525 15.875 22.225 16.15 0.992       LMB8 4 12.700 22.225 31.750 24.46 1.168 1.5 9 80° LMB12 5 19.050 31.750 41.275 29.61 1.422 1.5 11 60° LMB16 6 25.400 39.688 57.150 44.57 1.727 1.5 12 50° LMB20 6 31.750 50.800 66.675 50.92 1.727 2.5 15 50° LMB24 6 38.100 60.325 76.200 61.26 2.184 3 18 50° LMB32 6 50.800 76.200 101.600 81.07 2.616 3 25 50° LMB40 6 63.500 95.250 127.000 100.99 3.048 3 30 50° LMB48 6 76.200 114.300 152.400 120.04 3.048 3 40 50° LMB64 6 101.600 152.400 203.200 158.95 3.530 3 50 50°
