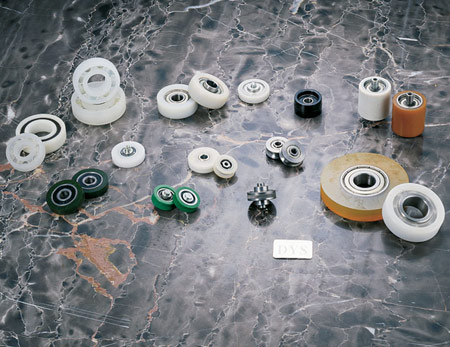

| Plastic
Bearings |
| |
 |
|
|
|
| |

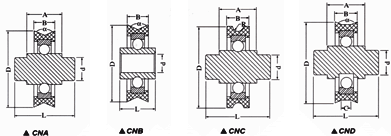

| ITEM
NO. |
DIMENSION
(mm) |
BALL |
| D |
d |
F |
B |
A |
L |
¦Á |
NO. |
DIA. |
| CNA2101 |
21 |
5 |
19 |
8 |
8.6 |
13.6 |
150 |
6 |
1/8 |
| CNA2102 |
21 |
6 |
19.4 |
7 |
7.6 |
10.8 |
150 |
6 |
1/8 |
| CNA2103 |
21 |
6 |
20 |
7 |
7.5 |
11 |
156 |
6 |
1/8 |
| CNA2104 |
21 |
6 |
20 |
7 |
7.5 |
13.8 |
156 |
6 |
1/8 |
| CNA2105 |
21.5 |
6 |
20 |
8 |
10.5 |
15.5 |
156 |
6 |
1/8 |
| CNA2201 |
22 |
6 |
20 |
7.3 |
8 |
14 |
150 |
6 |
1/8 |
| CNA2202 |
22 |
6 |
20 |
9 |
9.4 |
12 |
150 |
6 |
1/8 |
| CNA2203 |
22 |
6 |
20 |
9 |
9 |
14.5 |
150 |
6 |
1/8 |
| CNA2204 |
22 |
6 |
20 |
9 |
9.4 |
15.8 |
150 |
6 |
1/8 |
| CNA2205 |
22 |
6 |
20 |
9 |
9.8 |
15.8 |
150 |
6 |
1/8 |
| CNA2206 |
22 |
6 |
20 |
8 |
|
16 |
150 |
6 |
1/8 |
| CNA3001 |
30 |
7 |
27.8 |
11 |
|
18 |
156 |
7 |
5/32 |
| |
| CNB1901 |
19.5 |
4 |
17.7 |
7 |
|
11.5 |
150 |
6 |
1/8 |
| CNB2001 |
20.5 |
5 |
18.6 |
7 |
|
12 |
150 |
6 |
1/8 |
| CNB2002 |
20.8 |
5 |
19.4 |
7 |
|
7.5 |
156 |
7 |
1/8 |
| CNB2101 |
21 |
5 |
20 |
7 |
|
7 |
156 |
6 |
1/8 |
| CNB2102 |
21 |
5 |
20.4 |
7 |
|
7.5 |
156 |
6 |
1/8 |
| CNB2201 |
22 |
6 |
20 |
9 |
|
11.3 |
150 |
7 |
1/8 |
| CNB2202 |
22 |
6 |
20 |
9 |
|
11.3 |
156 |
6 |
1/8 |
| CNB2203 |
22 |
6 |
20 |
10 |
|
11 |
156 |
6 |
1/8 |
| CNB2204 |
22.4 |
6 |
20 |
9 |
|
11.3 |
150 |
7 |
1/8 |
| CNB2701 |
27.3 |
6 |
25 |
11 |
|
12 |
156 |
7 |
5/32 |
| CNB3001 |
30 |
7 |
28 |
12 |
|
13 |
156 |
7 |
5/32 |
| |
D |
d |
F |
B |
A |
L |
R |
|
|
| CNC2101 |
21.6 |
6 |
20.6 |
8 |
8.5 |
11.5 |
11 |
6 |
1/8 |
| CNC2701 |
27 |
6 |
25 |
8 |
11.5 |
14.5 |
4.5 |
7 |
5/32 |
| CNC2801 |
28 |
6 |
24 |
8 |
11.5 |
14.5 |
2.25 |
7 |
5/32 |
| CNC2802 |
28 |
6 |
24 |
8.3 |
11.4 |
14.5 |
2.1 |
7 |
5/32 |
| |
D |
d |
F |
B |
A |
L |
C |
¦Á |
|
|
| CND2101 |
21 |
4 |
19 |
7 |
7.7 |
11 |
3.2 |
120 |
6 |
1/8 |
| CND2201 |
22 |
6 |
19 |
8 |
8.5 |
11.4 |
3.5 |
99 |
6 |
1/8 |
| CND2202 |
22 |
6 |
19 |
8 |
8.5 |
11.5 |
3 |
100 |
6 |
1/8 |
|
| |
| ITEM NO. |
DIMENSION (mm) |
| D |
d |
A |
B |
L |
E |
C |
| CNE-2206 |
22 |
6 |
10 |
6 |
10 |
8 |
1.5 |
| CNE-2406 |
24 |
6 |
10 |
6 |
10 |
8 |
1.5 |
| CNE-2506 |
25 |
6 |
10 |
6 |
10 |
8 |
1.5 |
| |
|
|
|
|
|
|
|
| CNF-2206 |
22 |
6 |
9.5 |
7 |
|
|
|
| CNF-2406 |
24 |
6 |
9.5 |
7 |
|
|
|
| CNF-3008 |
30 |
8 |
14.5 |
8 |
|
|
|
| |
| ITEM NO. |
DIMENSION (mm) |
PRESSED |
BEARINGS |
| D |
d |
E |
F |
B |
A |
L |
| PBF01 |
28.6 |
9.65 |
17.5 |
31.75 |
7.9 |
17.53 |
20.70 |
| PBF02 |
28.6 |
9.55 |
17.5 |
31.75 |
7.9 |
13.1 |
17.47 |
| PBF03 |
28.6 |
8.1 |
17.4 |
31.75 |
8 |
16 |
18.85 |
| PBF04 |
28.6 |
9.6 |
17.5 |
31 |
7 |
14.5 |
20 |
|
| |
| |
|
|
