SA...E(ES), SI...E(ES) series

Spherical Plain Bearings Model: GE...E(ES),GE...ES-2RS,GEG...E(ES),GEG...ES-2RS,GE...C series / GEF...ES series / GEEW...ES,GEEM...ES-2RS series / GEZ...ES, GEZ...ES-2RS series / GEBK...S series / SA...E(ES), SI...E(ES) series / SIJK...C, SI...C series / SAJK...C, SA...C series / PHS, POS series / SQD, SQZ...RS SQ...RS series / GK...NK, GK...CK series / SK...ES, SF...ES series

Online Order Print this page Showing 1-1 of 1, total pages 1

SA...E(ES), SI...E(ES) series

Bearing No. d B C1max d1min d2min d3 I1min I2max h SA5E 5 6 4.5 7 21 M5 16 48 36 SA6E 6 6 4.5 8 21 M6 16 48 36 SA8E 8 8 6.5 10 24 M8 21 55 42 SA10E 10 9 7.5 13 29 M10 26 63 48 SA12E 12 10 8.5 15 34 M12 28 71 54 SA15ES 15 12 10.5 18 40 M14 34 83 63 SA17ES 17 14 11.5 20 46 M16 36 92 69 SA20ES 20 16 13.5 24 53 M20x1.5 43 105 78 SA25ES 25 20 18 29 64 M24x2 53 126 94 SA30ES 30 22 20 34 73 M30x2 65 147 110 SA35ES 35 25 22 39 82 M36x3 82 182 140 SA40ES 40 28 24 45 92 M39x3 86 198 150 SA45ES 45 32 28 50 102 M42x3 92 217 163 SA50ES 50 35 31 55 112 M45x3 104 246 185

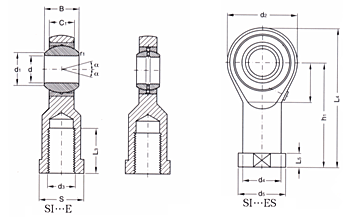

Bearing No. d B c1max d1min d2min d3 d4 d5 h1 I3min I4max I5 SI5E 5 6 4.5 7 21 M5 10 13 30 11 42 5 SI6E 6 6 4.5 8 21 M6 11 13 30 11 42 5 SI8E 8 8 6.5 10 24 M8 13 16 36 15 49 5 SI10E 10 9 7.5 13 29 M10 16 19 43 15 58 6.5 SI12E 12 10 8.5 15 34 M12 18 22 50 18 67 7 SI15ES 15 12 10.5 18 40 M14 21 26 61 21 81 8 SI17ES 17 14 11.5 20 46 M16 24 29 67 24 90 10 SI20ES 20 16 13.5 24 53 M20x1.5 28 34 77 30 104 10 SI25ES 25 20 18 29 64 M24x2 35 42 94 36 126 12 SI30ES 30 22 20 34 73 M30x2 42 50 110 45 147 15 SI35ES 35 25 22 39 82 M36x3 48 58 125 60 167 15 SI40ES 40 28 24 45 92 M39x3 52 65 142 65 190 18 SI45ES 45 32 28 50 102 M42x3 58 70 145 65 199 20 SI50ES 50 35 31 55 112 M45x3 62 75 160 68 221 20
